Ribbon Dialog Bar

Fully implemented BCGControlBar Pro (MFC)

Not available BCGSuite (MFC)

Not available BCGControlBar for .NET

The CBCGPRibbonDialogBar class extends the functionality of docking control bar by enabling you to embed a Ribbon Control into dockable window.

To take advantage of this class:

  • Instantiate a CBCGPRibbonDialogBar object.
  • Call the CBCGPRibbonDialogBar::Create method to create a window and specify some additional parameters.
  • Use CBCGPRibbonDialogBar::AddPanel method to add as many Ribbon panels as you need.
  • Call CBCGPRibbonDialogBar::GetRibbon method to obtain a reference to Ribbon Control embedded into the dialog bar. Use this refence to manipulate the Ribbon as you would do with the regular Ribbon Control.

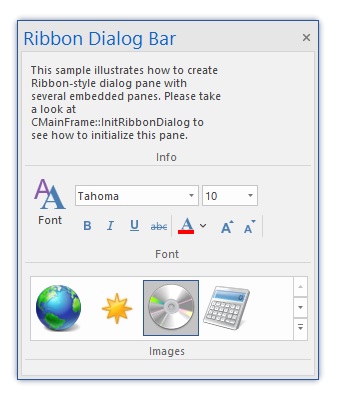

Ribbon dialog bar:

Ribbon dialog bar:
