Product feature tour

Context | First | Prev | Next | Last
Fully implemented BCGControlBar Pro (MFC)
Not available BCGSuite (MFC)
Fully implemented BCGControlBar (Microsoft .NET)

Office 2010/2013/2016-style Ribbon

This ribbon visual style is very similar to the Ribbon control introduced in Microsoft Office versions 2010, 2013 and 2016. In general, the control behavior is the same as in Office 2007, but you can see the following new UI features:

  • White color theme
  • Flat panels and groups
  • Modified (rectangular) Application ("main") button with a text label
  • "Minimize" button
  • Backstage view
Office 2013-style Ribbon:

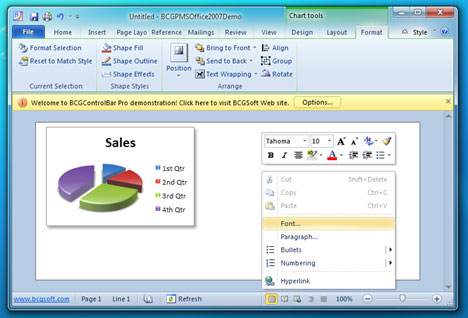

Office 2010-style Ribbon:


Sample code:
m_wndRibbonBar.SetScenicLook ();
CBCGPVisualManager::SetDefaultManager (RUNTIME_CLASS (CBCGPVisualManager2010));

// Change application button color:
((CBCGPVisualManager2010*)CBCGPVisualManager::GetInstance())->SetMainButtonColor(RGB(0, 192, 0));
