Product feature tour

Context | First | Prev | Next | Last
Fully implemented BCGControlBar Pro (MFC)
Fully implemented BCGSuite (MFC)
Not available BCGControlBar (Microsoft .NET)

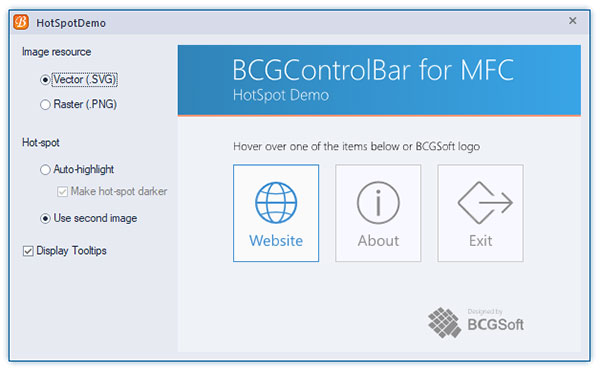

Images with hot-spot areas

There is a special control that implements the functionality of a control with background image containing clickable points (hot spots).  Its features:

  • Ability to add hot spots
  • Ability to provide the hot spot image control with the regular and hot images
  • Ability to automatically highlight hot spot area when the mouse cursor is moving over the area.
  • Ability to display a custom cursor when the mouse is hovering over the hot spot
  • Hot spot tooltips
Sample code:
CBCGPHotSpotImageCtrl m_wndImage;
...
m_wndImage.SetImage (IDB_START /* Regular image */, IDB_START_HOT /* Image with hot areas */);

m_wndImage.AddHotSpot (id1, CRect (CPoint (220, 13), CSize (155, 36)));
m_wndImage.AddHotSpot (id2, CRect (CPoint (220, 48), CSize (145, 18)));
m_wndImage.AddHotSpot (id3, CRect (CPoint (220, 68), CSize (157, 36)));
m_wndImage.AddHotSpot (id4, CRect (CPoint (220, 102), CSize (136, 36)));

void CMyView::OnClickHotSpot()
{
    UINT uiCmd = m_wndImage.GetHotSpot ();

    // TODO: Process uiCmd command
}
